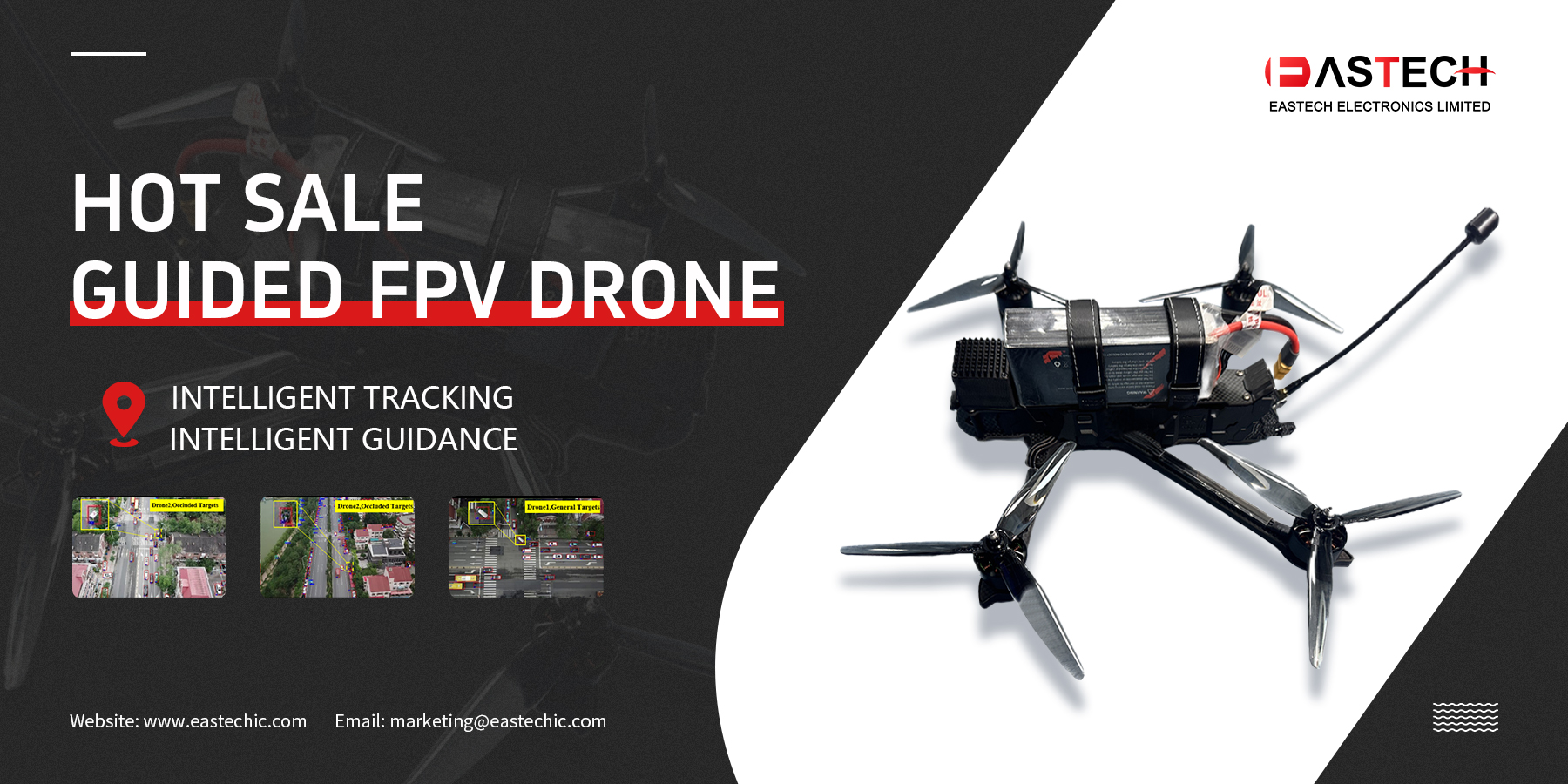

The guided FPV drone is a new type of aircraft that integrates cutting-edge technology. The design concept aims to solve the tracking and guidance of traditional UAV questions in high-speed movements and complex environments. Its core feature is that it is equipped with an intelligent tracker and uses advanced target-tracking algorithms to ensure accurate target locking at high speeds or against complex backgrounds. At the same time, the guided FPV drone also has a stable and precise flight guidance mechanism, suitable for military reconnaissance, disaster rescue, and other fields. With technological advancement, its application fields are expected to be further expanded.
FUNCTION
1. Intelligent tracking: Equipped with an intelligent tracker, using advanced target tracking algorithms, accurate Lock on stationary/moving targets. This feature significantly improves the mission efficiency of drones, and accuracy, solving the problem of traditional drones tracking targets in high-speed movements and complex environments.
2. Intelligent guidance: Integrating navigation and control technology, The Guided FPV Drone can operate In the case of without GPS signals. It uses technical means such as sensors and image recognition to determine its own position and attitude information, thereby achieving precise tracking and guidance of targets.
Technical parameters
1. Track performance
1) Data refresh rate: 50hz
2) Minimum contrast: 5%
3) Tracking speed: ±32 pixels/field
4) With the target memory tracking function
5) Target size: 16×16～128×128 pixels
2. Lens parameters
1) Sensor: 1/1.8'' Inch Starlight Sensor
2) Focal length: 6mm
3) Horizontal resolution: 1200TVL
4) Field of view: 36.86°×29.14°
3. Link parameters
1) Image transmission: 5.8G 1.6W/5.8G 2.5W;
2) Remote control: ELRS 2.4G/915M receiver
4. Flight time: It can fly continuously for nearly 20 minutes under full load and normal working environment (6s 3300mAh 95C).
5. Frame: DC type
6. Wheelbase: 327±2mm;
7. Propeller: HQ 7.5*3.7*3;
8. Dimensions (L×W×H): 270x270x61mm;
9. Maximum horizontal flight speed: 140km/h;
10. Maximum wind resistance level: level 6;
11. Working environment temperature: -10℃—40℃;
Application scenarios
1. Reverse slope attacks: Mainly used on the reverse slopes of mountains, air defense bunkers， and even canyons. It is completely capable of hitting various targets without any blind spots. With high speed and precision, it has accurate and flexible characteristics and can carry out operations without the enemy being aware of it or unable to effectively counterattack.
2. Urban combat: Can quickly attack enemies hidden in buildings and small spaces, destroying enemy positions and important targets, providing fire support for ground troops, and effectively reducing enemy threats. In addition, it also has high-precision tracking and anti-interference capabilities and can operate in complex urban environments, effectively fight in the environment, and improve combat efficiency and survivability.
