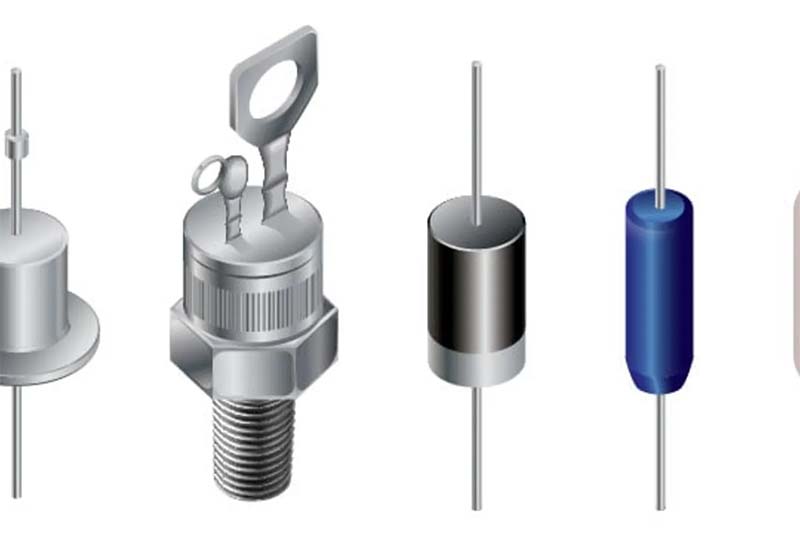

What is a Diode in a Circuit?
Diodes are among the most fundamental and widely used semiconductor components in modern electronics, often regarded as one-way current switches in electronic circuits. Various types of diodes in electronics are widely applied in consumer devices, power adapters, control circuits, and lighting systems, making diodes indispensable components in modern electronic design.
What is a diode in a circuit? Diodes feature a distinct unidirectional conduction characteristic, allowing current to flow smoothly from the anode to the cathode while blocking reverse current flow. Without requiring complex control mechanisms, diodes can automatically direct current and provide reverse isolation, while also performing essential functions such as rectification, voltage regulation, light emission, and signal detection.

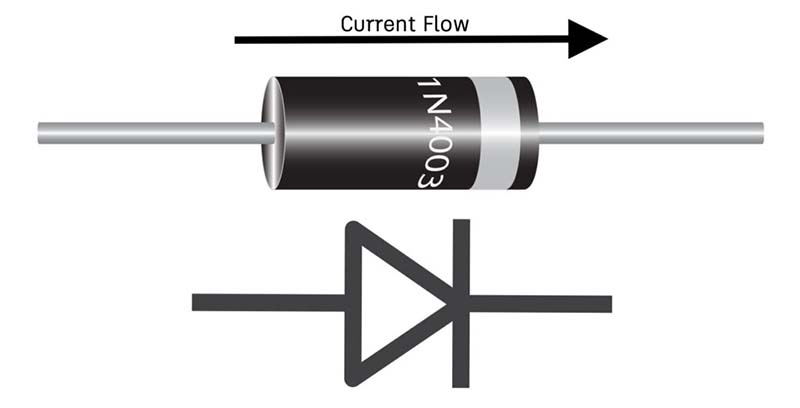

How Does a Diode Work?
A diode is a basic semiconductor component that only allows electric current to flow in one direction and blocks current from flowing in the reverse direction.
It has two terminals: anode and cathode.When the anode is connected to positive voltage and the cathode to negative, the diode turns ON, conducts current smoothly.When the voltage is reversed, the diode turns OFF, stops current completely.
This one-way conducting feature makes diodes widely used for rectification, circuit protection, voltage regulation, signal detection and light emission in all kinds of electronic circuits.

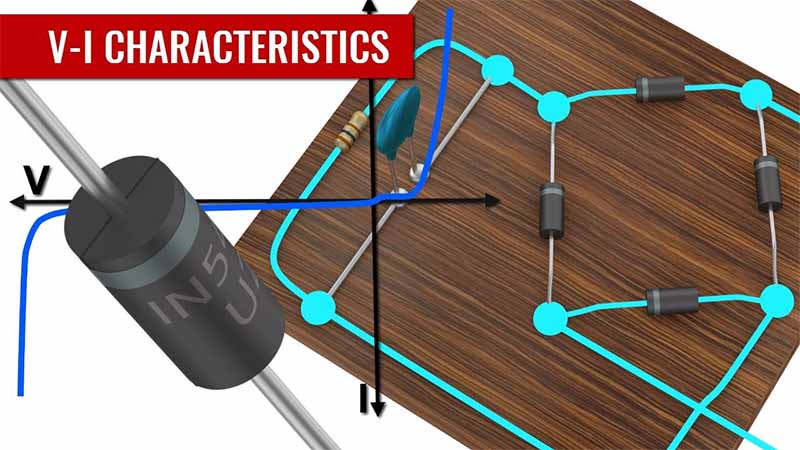

What is the Function of a Diode in a Circuit?
1. Rectification Function
Diodes can convert alternating current (AC) into current (DC), which is why they are also known as rectifiers. Inside power adapters and chargers, diode rectifier circuits are widely used to provide stable DC power for electronic devices.
2. Voltage Regulation and Limiting
When a Zener diode operates in the reverse breakdown region, the voltage across it remains nearly constant. If the circuit voltage rises too high, the Zener diode can automatically regulate and stabilize the voltage to protect downstream chips and components from over-voltage damage. This function is commonly used in regulated power supplies and reference voltage circuits.
3. Reverse Polarity Protection
Diodes can serve as reverse polarity protection components to prevent equipment damage caused by incorrect power connections. When the polarity is correct, the diode conducts normally and allows the circuit to operate. If the polarity is reversed, the diode blocks current flow and disconnects the circuit, providing simple and reliable protection.
4. Signal Detection and Demodulation
In RF and radio circuits, diodes are used for signal detection and demodulation. They can extract low-frequency audio or useful signals from high-frequency carrier waves while filtering out unwanted high-frequency components, enabling devices to reproduce sound and valid communication signals. This is a fundamental application in wireless communication circuits.
5. Light Emission and Indication
Light-emitting diodes (LEDs) not only conduct current in one direction but also convert electrical energy into light when powered on. LEDs are commonly used as power indicators, status lights, display backlights, and decorative lighting. With low power consumption and long service life, they are widely found in household appliances and digital devices.
6. Freewheeling Protection
Inductive components such as relays, coils, and motors generate reverse high-voltage electromotive force when power is turned off. A parallel diode provides a discharge path for the reverse induced current, suppressing voltage spikes and protecting nearby electronic components from damage. This protection method is widely used in industrial control systems and relay driver circuits.

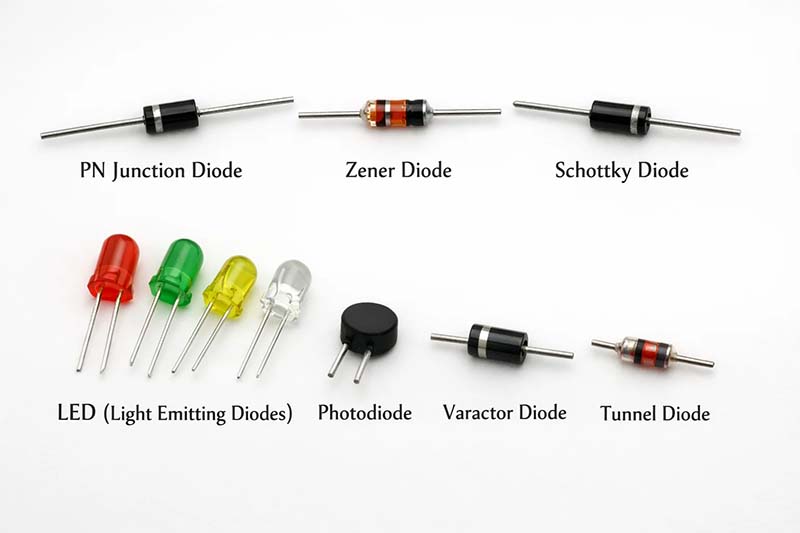

Different Types of Diodes and Applications
The most common basic diode, mainly used for one-way conduction and rectification. It is widely applied in converting AC power into DC power and is commonly found in power adapters, chargers, and industrial rectifier circuits due to its high voltage and current handling capabilities.
2. Zener Diode
A Zener diode is specifically designed to operate in the reverse breakdown region, where it maintains a stable voltage across its terminals. It is mainly used for voltage reference, voltage regulation, and overvoltage protection to prevent chips and circuits from damage caused by excessive voltage.
3. Light-Emitting Diode (LED)
When conducting electricity, LEDs convert electrical energy into light and can emit various colors such as red, green, blue, and white. They are widely used in power indicators, status lights, display screens, lighting systems, and decorative illumination.
4. Schottky Diode
Schottky diodes feature low forward voltage drop, ultra-fast switching speed and low power loss. They are ideal for high-frequency circuits, switching power supplies, fast charging systems and high-frequency rectification applications, and are widely categorized as RF diodes.
5. Fast Recovery / Ultra-Fast Recovery Diode
These diodes have very short reverse recovery times and fast switching performance. They are specially designed for high-frequency rectification, inverter circuits, and switching power supplies, making them more suitable for high-frequency operations than standard rectifier diodes.
6. Photodiode
A photodiode changes its conduction current when exposed to light, allowing it to convert optical signals into electrical signals. It is commonly used in light detection, optical switches, infrared receivers, and light-sensing circuits.
7. Varactor Diode
The junction capacitance of a varactor diode changes with variations in reverse bias voltage. It is mainly used in radio tuning, RF circuits, frequency modulation, and oscillator applications in wireless communication systems.
8. DIAC (Bidirectional Trigger Diode)
A DIAC can conduct current in both directions once triggered, without the one-way limitation of ordinary diodes. It is commonly used in voltage control circuits, dimmers, motor speed controllers, thyristor triggering, and household appliance control systems.

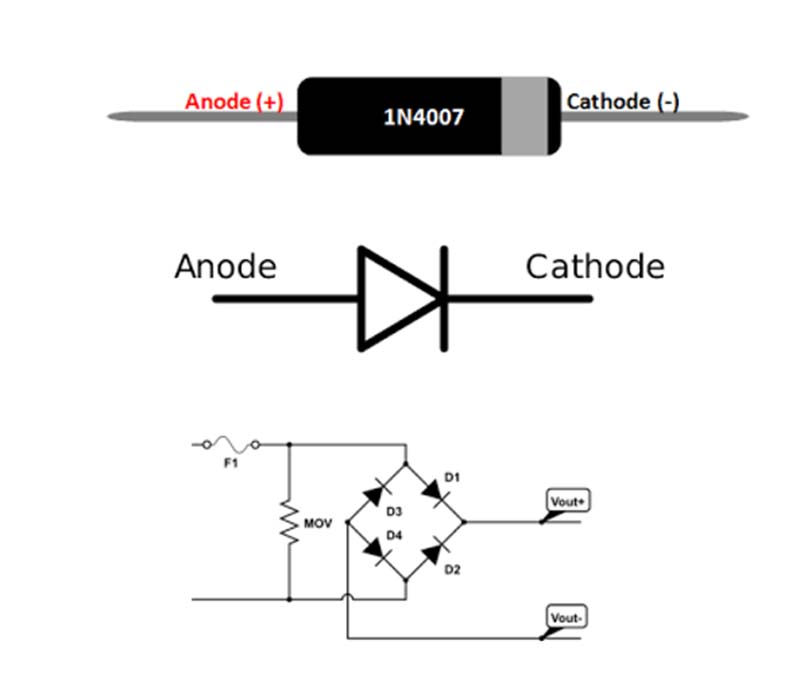

What is a 1N4007 Diode?
The 1N4007 is a standard silicon rectifier diode with a rated forward current of 1A and a reverse voltage rating of 1000V. It belongs to the 1N400x family of rectifier diodes, where the "x" represents different voltage ratings within the series.
Specifications
Maximum Reverse Voltage (VR): 1000 V
Average Forward Current (IF): 1 A
Forward Voltage Drop (VF): ~0.7 V @ 1 A
Peak Surge Current (IFSM): 30 A
Reverse Leakage Current (IR): ≤ 5 μA
Function
AC to DC rectification in power supplies and adapters.
Bridge rectifiers for low‑power circuits.
Reverse‑polarity protection for batteries and circuits.
Freewheeling diodes for relays and small inductive loads.
Vishay provides electronic component solutions covering passive and discrete semiconductors, including MOSFETs, ICs, diodes and rectifiers, optoelectronic devices, resistors, sensors, inductors, custom magnetic components, and capacitors.
Can 1N4007 Replace 1N4001?
Yes. In most applications, a 1N4007 Diode can usually be used to replace a 1N4001 Diode.
The 1N4001 has a reverse voltage rating of 50V, while the 1N4007 has a much higher rating of 1000V. Both are rated for 1A forward current. In essence, the 1N4007 is a high-voltage version of the 1N4001, making it suitable as a drop-in replacement in most circuits where space and pinout are the same.
Equivalent / Alternative Models of 1N4007
1N5408, 1N4007G, FR107, UF4007, 1N5399, BY133, EM516, RL207
How to Choose Equivalent Replacement Diodes?
1. Standard Rectifier Diodes (e.g., 1N4001 / 1N4007 / 1N5408)
Current rating ≥ original part
Voltage rating ≥ original part
General rule: within the same series, a higher number means higher voltage rating and can replace lower-rated versions.
Example: 1N4007 Diode (1A / 1000V) can replace 1N4001–1N4006
2. Schottky Diodes
Must match both current and voltage ratings
Must remain the same type (Schottky cannot be replaced with standard rectifier diodes)
3. Zener Diodes (Voltage Regulator Diodes)
Zener voltage must be exactly the same (e.g., 5.1V, 12V)
Different voltage values cannot be substituted, or the circuit may fail or be damaged
Power rating should be equal or higher (e.g., 0.5W, 1W, 2W)
How to Select Diode for Circuit?
1. Which type of circuit are diodes used for?
1) Standard power-frequency rectification, reverse polarity protection, and freewheeling applications
Choose general rectifier diodes such as 1N4007 Diode or 1N5408 Diode (e.g., 1N4001–1N4007, 1N5408 series).
These diodes are designed for low-frequency power circuits, offering stable one-way conduction, low cost, and wide applicability. They are commonly used for AC-to-DC rectification, reverse polarity protection at power inputs, and flyback current absorption in inductive loads such as relays and coils to suppress back EMF.
2) Switch-mode power supplies, high-frequency rectification, fast charging applications
Use Schottky diodes, fast recovery (FR), or ultra-fast recovery (UF) diodes.
Standard rectifier diodes have slow switching speeds. In high-frequency circuits, they generate heat, reduce efficiency, and may even fail.
Schottky diodes feature low forward voltage drop and low loss
Fast/ultra-fast recovery diodes have extremely short reverse recovery time, making them suitable for high-frequency switching
3) Indicator lights, lighting, and display applications
Use LED (light-emitting diodes). You can select different colors and package sizes as needed. LEDs convert electrical energy directly into light with very low power consumption, long lifespan, and fast response time.
4) Stable voltage / reference voltage applications
Zener diodes operate in the reverse breakdown region, maintaining a constant voltage despite small current fluctuations.
They are mainly used for voltage reference sampling, voltage regulation via voltage division, and overvoltage clamping protection. They provide stable reference voltages for microcontrollers, ICs, and precision circuits, preventing abnormal operation caused by voltage variation.
5) Light sensing and infrared detection applications
Photodiodes are highly sensitive to light intensity. The stronger the light, the higher the reverse current, allowing accurate conversion of optical signals into electrical signals.
They are widely used in automatic light sensing switches, infrared remote control receivers, optoelectronic detection, smoke sensing, and ambient light detection systems.
6) ESD protection and surge/overvoltage protection applications
TVS (Transient Voltage Suppression) diodes respond at nanosecond speed and can instantly absorb electrostatic discharge, lightning surges, and voltage spikes.
They are used to protect microcontrollers, interface chips, and precision electronic components, commonly installed at device ports and PCB input stages for lightning protection, ESD protection, and surge suppression.
2. Key Parameters of Diode
1) Forward Current (If)
Check the maximum current in the circuit, and select a diode with a rated current at least 1.5–2 times higher than the actual operating current to provide sufficient margin.
For example, if the circuit's maximum current is 0.5A, a 1A-rated diode such as the 1N4007 Diode is typically sufficient.
2) Reverse Voltage (Vr)
Check the maximum reverse voltage in the circuit. The diode's reverse voltage rating must be higher than the circuit's peak voltage.
For example:
1N4001 Diode: 50V rating
1N4007 Diode: 1000V rating
For higher-voltage applications, always choose a diode with a higher voltage rating.
3) Forward Voltage Drop (Vf)
Schottky diodes have a low forward voltage drop (about 0.2–0.4V), resulting in lower power loss. Standard silicon diodes are around 0.7V.
For low-voltage, high-current circuits, Schottky diodes are preferred to reduce heat generation and improve efficiency.

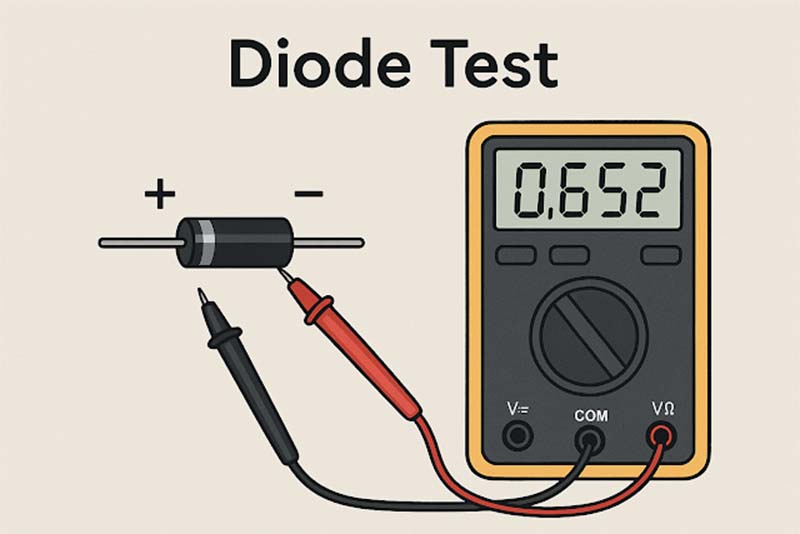

How to Test a Diodes?
Each diode has a rated current and voltage, which are determined by its material, package structure, and internal design. A digital multimeter in diode test mode can be used for basic checks, but to further evaluate the actual performance and rated parameters, multiple testing methods are required.
1. Check Forward Conduction and Polarity Using a Multimeter
Set the digital multimeter to "diode test" mode:
Connect the red probe to the anode and the black probe to the cathode. A normal diode will show a forward voltage drop.
- A silicon diode typically shows about 0.6V–0.7V.
- A Schottky diode typically shows about 0.2V–0.4V.
- If the reading shows "OL" or infinity, the reverse blocking function is normal.
- If the diode conducts in both directions, it may be short-circuited; if it does not conduct in either direction, it may be open and damaged.
This method is mainly used to determine whether the diode is functioning properly.
2. Test Rated Forward Current
The rated current refers to the maximum continuous forward current the diode can safely handle.
Testing usually requires:
- A programmable DC power supply
- A series current-limiting resistor
- Gradually increasing current while monitoring temperature rise
- An ammeter to record stable operating current
If the current exceeds the rated value, the diode will heat up significantly and may be damaged. During testing, prolonged operation beyond datasheet limits should be avoided.
3. Test Reverse Voltage Capability
Reverse voltage rating refers to the maximum voltage a diode can withstand under reverse bias.
Testing method:
- Use a high-voltage adjustable power supply
- Connect the diode in reverse bias
- Slowly increase the voltage
- Monitor leakage current changes
A sudden increase in leakage current indicates that the diode is approaching breakdown voltage. Strict current limiting is required during testing to prevent permanent damage.
4. Measure Leakage Current
High-quality diodes exhibit extremely low leakage current in reverse blocking mode. It can be measured using:
- A precision multimeter
- A semiconductor parameter tester
- An oscilloscope with a test circuit
If leakage current increases significantly, it usually indicates aging or internal damage of the device.

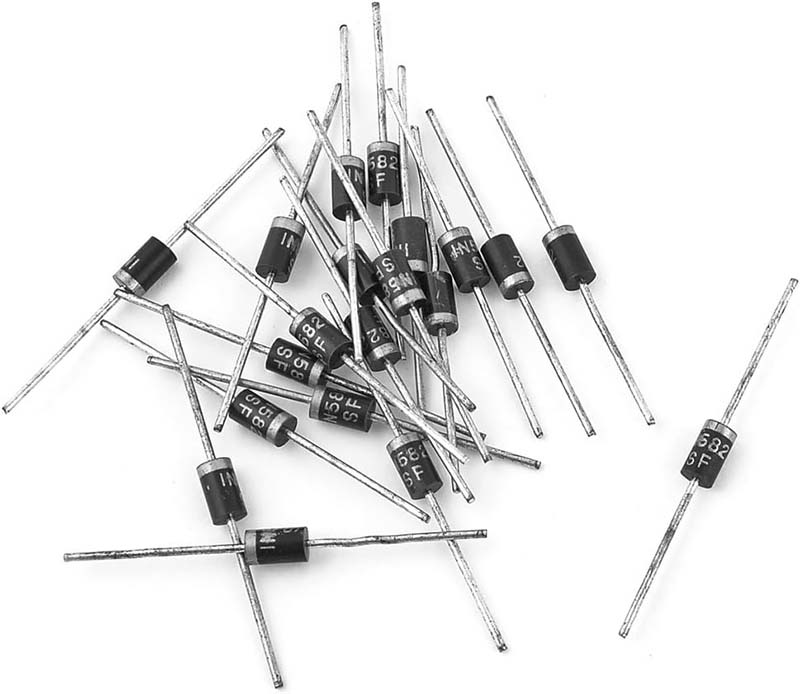

We provide comprehensive distribution services for a full range of diodes, offering complete model coverage with guaranteed original and authentic components. Our product portfolio includes rectifier diodes, Schottky diodes, fast recovery diodes, switching diodes, Zener diodes, TVS ESD protection diodes, high-voltage diodes, and many other passive and discrete semiconductors.
We support a wide variety of package types, including through-hole and SMD packages such as SMA, SMB, SMC, DO, TO, and other industry-standard specifications, suitable for applications in industrial control, power supplies, home appliances, automotive electronics, renewable energy systems, and more.
Popular and commonly used diode models are maintained in large-volume stock for fast delivery and stable supply. For obsolete, hard-to-find, or specialized components, we also provide professional sourcing and BOM matching services, helping customers achieve efficient one-stop electronic component procurement.
In summary, understanding what is the function of a diode in a circuit helps clarify how current direction control, signal handling, and protection mechanisms are implemented in electronic designs. From basic power hardware to electronic system design, diodes play a vital role in ensuring stable and efficient circuit performance across a wide range of applications.
