Micron Memory and Storage for the Edge of AI

From big data centers and intelligent edge devices to PCs and mobile products, delivers reliable micron memory modules that help industries improve operational efficiency and unlock new opportunities in digital transformation. This article will provide a comprehensive introduction to Micron ram memory and explore its applications in the new era of AI and big data.

Powered by the dual brands of Micron Technology Micron® and Crucial®, Micron has built a comprehensive portfolio of high-performance memory and storage solutions, including DRAM, NAND flash, NOR flash, and various SSD products. These solutions are widely used in advanced computing, consumer electronics, networking equipment, and mobile devices, empowering emerging technologies such as AI and 5G communications.

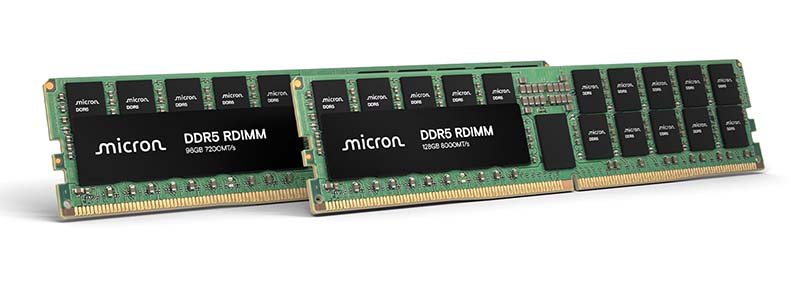

Micron RAM Memory Modules

Micron Technology is one of the world's top three DRAM manufacturers, with a product portfolio covering standard DDR, low-power LPDDR, server and AI-oriented MRDIMM/SOCAMM, and high-bandwidth HBM memory solutions.

DRAM (Dynamic Random Access Memory)

DRAM stores data using capacitors and requires continuous refreshing. It offers large capacity, low cost, and easy integration, making it the mainstream form of system memory.

SDRAM (Synchronous Dynamic Random Access Memory)

SDRAM operates in synchronization with the system clock, ensuring data read and write operations are aligned with clock cycles for higher efficiency. All modern DDR and LPDDR memory technologies belong to the SDRAM category.

Standard DDR SDRAM Series (PC / Server / General Computing)

1. DDR4 (Mainstream and Mature Platform)

Capacity: 4Gb–16Gb per chip; 8GB–64GB per module

Speed: 2133–3200 MT/s

Voltage: 1.2V

Applications: PCs, servers, embedded systems, and consumer electronics

2. DDR5 (Next-Generation Mainstream for AI & Data Centers)

Process Technology: 1β (1-beta) → 1γ (1-gamma, mass production in 2025 with EUV technology)

Capacity: 16Gb per chip (1γ); 32GB–128GB RDIMM modules

Speed: 4800–9200 MT/s (up to 9200 MT/s for 1γ)

Voltage: 1.1V

Key Features:

Bandwidth is twice that of DDR4

1γ process reduces power consumption by 20% and increases density by 30%

Applications: Data centers, AI training and inference, high-end PCs, and gaming systems

3. MRDIMM (Multiplexed Rank DIMM - Flagship Memory for AI Servers)

Based on DDR5 architecture and optimized for Intel Xeon 6 and AI workloads

Bandwidth: 39% higher than standard DDR5 RDIMM

Latency: Reduced by 40%

Capacity: 32GB–256GB

Speed: Up to 8800 MT/s

Applications: High-bandwidth, low-latency main memory for AI and HPC applications

Low-Power LPDDR Series (Mobile/Ultrabooks /Automotive)

1. LPDDR4 / LPDDR4X (Previous-Generation Mobile Mainstream)

LPDDR4: 1.1V, up to 4267 MT/s

LPDDR4X: Ultra-low 0.6V voltage for lower power consumption; up to 4267 MT/s

Applications: Smartphones, tablets, ultrabooks, automotive electronics, and industrial devices

2. LPDDR5 (Current Mainstream for Mobile, Standard for 5G & AI Smartphones)

Speed: Up to 6400 MT/s (50% faster than LPDDR4X)

Voltage: 0.5V

Power Consumption: 20% lower than LPDDR4X

Capacity: 8Gb–32Gb per chip; 4GB–16GB per module

Applications: 5G smartphones, ultrabooks, automotive systems, and edge AI devices

3. LPDDR5X (Flagship Mobile Memory for On-Device AI)

Speed: Up to 10.7 Gbps (10700 MT/s)

Voltage: 0.5V, with optional lower-power LVDD2H mode

Power Consumption: 20% lower than 1β LPDDR5X

Packaging: Ultra-thin 0.61mm design, 6% thinner than competing solutions, optimized for foldable devices

Capacity: 16Gb–64Gb per chip; 8GB–32GB per module

Applications: AI imaging, large language models, premium ultrabooks, and autonomous driving systems

High-Bandwidth Memory (HBM) for AI Super-computing & Graphics

HBM3E / HBM4

Advanced stacked-memory architecture delivering ultra-high bandwidth at the TB/s level

Capacity: 12GB–36GB per package

Applications: AI training accelerators (such as the NVIDIA H100), supercomputers, and high-end graphics cards

Micron Memory and Storage

The product portfolio of Micron Technology can mainly be divided into three major categories: Memory, Storage, and Memory Multichip Packages.

1. Memory

Memory products are mainly designed for high-speed data processing and runtime caching, and are widely used in servers, PCs, mobile devices, AI systems, and automotive electronics.

DRAM Components

Standard DRAM chip products that provide core memory components for PCs, servers, networking equipment, and industrial control systems. Customers typically integrate these chips into memory modules or embedded solutions.

DRAM Modules

Memory modules built using DRAM chips, including RDIMM, UDIMM, and SODIMM solutions. These products are widely used in servers, workstations, PCs, and data centers.

Low-Power DRAM Components

Low-power DRAM chips, mainly including LPDDR4 and LPDDR5 series products. These solutions are optimized for lower power consumption and heat generation, making them ideal for smartphones, tablets, IoT devices, and edge AI systems.

Low-Power DRAM Modules

Module-based solutions built with low-power DRAM, designed for embedded systems, mobile computing devices, and certain automotive applications where power efficiency and compact size are critical.

High-Bandwidth Memory (HBM)

HBM is a high-bandwidth stacked memory technology that uses advanced 3D packaging to achieve extremely fast data transfer rates. It is primarily targeted at AI training, GPUs, HPC systems, and data center accelerator cards, making it one of the core components of modern AI servers.

Graphics Memory

Graphics memory products mainly include the GDDR series, designed for graphics cards, gaming devices, AI accelerators, and graphics workstations. These products emphasize high bandwidth and fast graphics data processing performance.

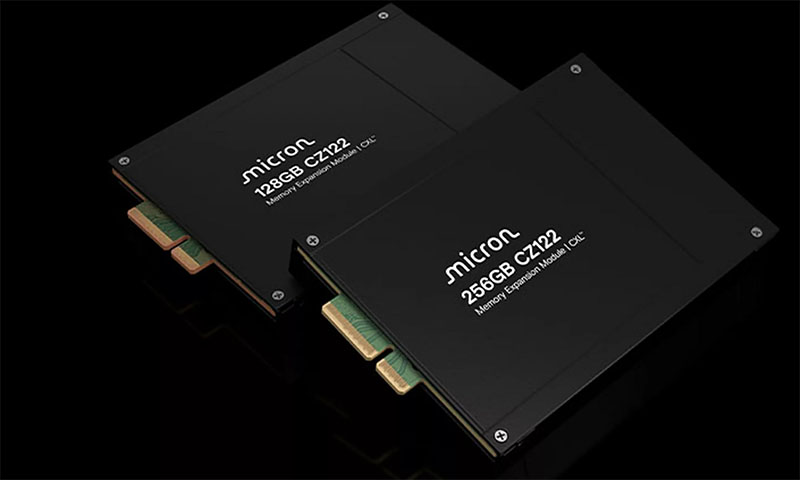

CXL Memory

Memory expansion solutions based on the CXL (Compute Express Link) architecture, designed to improve memory scalability and resource-sharing efficiency in servers and data centers. These products are mainly used in cloud computing and AI infrastructure.

Data Center Memory

Memory products specifically designed for enterprise servers and data centers, focusing on high capacity, reliability, and stable operation. These solutions support cloud computing, databases, and AI workloads.

2. Storage

Storage products are mainly designed for long-term data retention, with a strong focus on capacity, performance, durability, and data security.

SSDs

Micron Technology offers SSD products ranging from consumer-grade to enterprise-level solutions. Based on NAND Flash technology, these SSDs provide higher speed, lower power consumption, and better shock resistance compared with traditional hard disk drives.

Client SSDs

SSD solutions designed for personal computers, laptops, and consumer electronics. These products focus on improving system boot speed, application loading performance, and overall user experience.

Auto / Industrial SSDs

Automotive-grade and industrial-grade SSDs featuring wide-temperature operation, high reliability, and long service life. They are widely used in automotive electronics, industrial automation, edge computing, and other harsh environments.

Data Center SSDs

Enterprise and data center SSD products optimized for high IOPS, high concurrency, and long-term stable operation. These solutions are widely deployed in cloud servers, AI data centers, and enterprise storage systems.

3. Memory Multichip Packages(MCP)

MCP products are highly integrated solutions that combine multiple memory chips into a single package, helping reduce PCB space requirements and lower overall system complexity.

e.MMC-based MCP

Solutions that integrate LPDDR memory and e.MMC storage within the same package. These products are mainly used in entry-level and mid-range smartphones, IoT devices, and embedded applications, providing a balance between cost efficiency and integration.

NAND-based MCP

Combined packaging solutions based on NAND Flash and DRAM technologies, delivering both runtime memory and data storage capabilities for end devices. These products are widely used in consumer electronics and industrial equipment.

UFS-based MCP (uMCP)

Solutions that integrate LPDDR memory with high-speed UFS flash storage into a single package. Compared with traditional solutions, uMCP offers higher data transfer speeds and lower power consumption, making it ideal for 5G smartphones, high-performance mobile devices, and automotive systems.

How Micron Memory Storage Powers AI & Cloud Data Centers?

Micron Technology is reshaping the storage and memory architecture of AI data centers through three key pillars: HBM high-bandwidth memory, CXL memory expansion, and G9 NAND SSD technology. Together, these solutions address the critical bandwidth, capacity, and power-consumption challenges of AI training and inference workloads.

1. HBM: The High-Speed Pathway for AI Computing

Training large AI models requires ultra-high bandwidth at the TB/s level and extremely low latency, which traditional DDR5 memory can no longer fully satisfy. Micron's HBM3E adopts an 8-stack architecture, delivering 24GB capacity, 9.2Gbps pin speed, and up to 1.2TB/s bandwidth. Built on Micron's advanced 1β process technology without EUV, HBM3E also reduces overall power consumption by approximately 20%.

2. Memory Expansion

The memory capacity of a single GPU is limited and cannot fully support ultra-large AI model training. As a result, multi-GPU collaborative computing has become essential, while CXL and SOCAMM technologies are emerging as key solutions for overcoming GPU memory bottlenecks.

Micron introduced the world's first LPDDR5X data center module based on the SOCAMM architecture, supporting up to 128GB capacity and 256GB/s bandwidth per module. It can be directly deployed through the PCIe interface, effectively expanding the GPU memory pool. Combined with memory modules supporting PCIe and CXL protocols, these solutions enable TB-level memory expansion and multi-GPU memory pooling, significantly reducing the performance overhead caused by frequent data movement.

At the same time, Micron's 96GB and 128GB DDR5 RDIMM modules, together with MRDIMM solutions offering 50% higher bandwidth, provide full compatibility with today's mainstream AI server platforms.

3. G9 NAND SSD

The rapid growth of AI-generated data has created enormous demand for PB-scale, cost-efficient storage to handle training datasets, model checkpoints, and inference caching.

Micron's 6600 ION high-capacity SSD offers up to 245TB per drive in the E3.L form factor, enabling up to 4.9PB storage capacity within a single 1U server rack. Compared with traditional HDD-based storage systems, it can reduce rack space usage by 82% while lowering operating power consumption by 50%.

Meanwhile, the Micron 7600 PCIe 5.0 SSD, designed for mainstream enterprise workloads, delivers low latency, high stability, and excellent QoS performance. It is capable of supporting a wide range of AI workloads, including real-time inference and intelligent database applications.

4. Technology Synergy

AI training clusters primarily rely on HBM3E and HBM4 as ultra-high-speed local GPU memory, combined with CXL shared memory pools to enable efficient multi-device computing collaboration. High-speed SSDs such as the 9650 series further accelerate dataset access and model caching.

AI inference clusters, on the other hand, utilize SOCAMM modules to expand GPU memory capacity, while low-latency 7600 SSDs ensure inference efficiency and 6600 ION ultra-high-capacity SSDs build massive-scale data lakes.

Compared with traditional architectures, this integrated solution delivers:

10×higher bandwidth

100×larger memory and storage capacity

50% lower power consumption

These advancements provide the infrastructure foundation required for trillion-parameter AI model training and EB-scale data processing.

Global Memory and RAM Shortage 2026

The global memory and storage market is currently facing tight supply conditions, with shortages becoming increasingly severe across three major categories.

The first category involves AI server memory products, particularly HBM and high-end DDR5 memory. The explosive growth of generative AI has significantly increased market demand for high-performance memory solutions.

The second category is automotive-grade memory and storage products. Modern vehicles are now widely equipped with onboard AI systems and advanced driver-assistance systems (ADAS), driving continuous growth in demand for high-reliability automotive memory solutions.

The third category includes certain consumer-grade memory products. Due to production capacity adjustments by upstream wafer manufacturers, the gap between supply and demand is continuing to widen.

As a professional supplier deeply involved in the memory and storage industry, EASTECH can efficiently help customers solve supply shortage challenges. Simply submit your complete BOM list, and we can provide one-stop component sourcing with synchronized delivery for the entire order.

Below are popular Micron Technology memory modules carefully selected by hardware engineers, covering AI servers, data centers, embedded systems, and high-performance computing applications. We provide inventory availability, competitive pricing, and datasheets for bulk memory modules.

In conclusion, Micron memory and storage solutions play a critical role in enabling high-performance AI and data-intensive applications, offering reliability, speed, and scalability for modern computing systems. From memory modules to advanced storage technologies, these solutions continue to support the growing demands of edge AI and cloud infrastructure. In the broader ecosystem, working with Eastech as a micron ram memory distributor & supplier helps ensure access to authentic products and consistent availability for diverse application needs.
