Why Choose Micron Memory DRAM?

The rapid development of artificial intelligence and high-performance computing is driving unprecedented growth in demand for DRAM and NAND storage markets. As one of the world's leading memory chip manufacturers, Micron continues to provide high-performance DRAM products for high-speed data processing in servers and data centers, while also offering NAND flash solutions widely used in smartphones, solid-state drives (SSD), and various long-term storage devices. Among many micron dram memory products, the Micron MT53 Series, designed for automotive and embedded applications, stands out due to its high bandwidth, low power consumption, and high reliability, making it one of the most influential LPDDR memory products today.

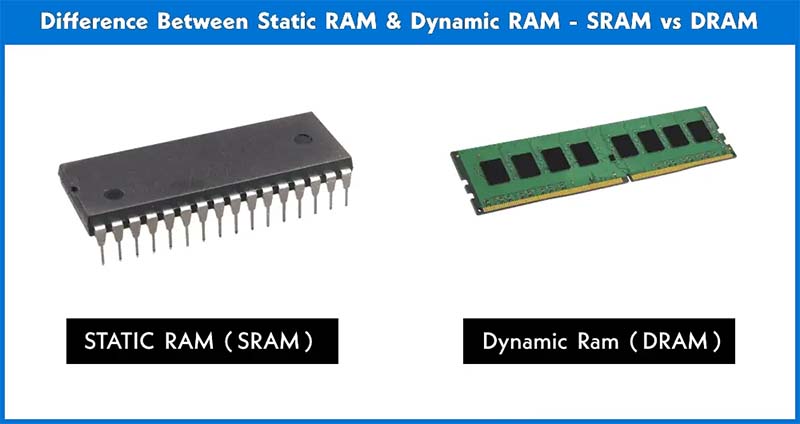

What is the Difference Between RAM, DRAM and SDRAM?

RAM is a general category of Random Access Memory. DRAM is a type of dynamic memory under RAM, which requires constant refreshing to retain data. SDRAM is an upgraded version of DRAM, it operates in synchronization with the system clock and delivers faster speed.

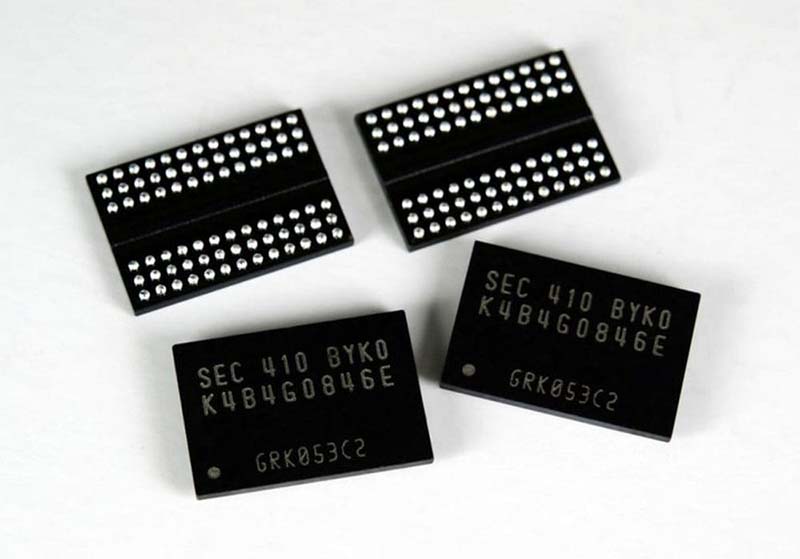

What Are the Types of DRAM Memory?

1. Asynchronous DRAM

It is the earliest generation of DRAM that works without a synchronized clock signal. It operates asynchronously with the system CPU, features simple structure but slow speed, and is now completely obsolete for modern electronics.

2. Synchronous DRAM (SDRAM)

SDRAM synchronizes its operation with the system clock. It achieves higher and more stable data transmission speed than asynchronous DRAM, standardizing memory timing and laying the foundation for later DDR memory generations.

3. DDR SDRAM (Double Data Rate SDRAM)

It transmits data twice per clock cycle, doubling bandwidth compared with traditional SDRAM.

DDR1: The first-generation DDR standard with basic double-rate transmission.

DDR2: Faster operating speed with lower power consumption and improved packaging design.

DDR3: Further upgraded in transmission speed, power efficiency and heat performance.

DDR4: Mainstream memory widely adopted in current desktops, laptops and servers.

DDR5: The latest mainstream generation, delivering much higher bandwidth, faster speed and better power efficiency for high-performance computing systems.

4. Graphics DRAM (GDDR)

A special DRAM customized exclusively for GPUs and graphics cards. It features ultra-high bandwidth and high-speed data transfer to handle massive graphics rendering, gaming and AI computing workloads.

5. LPDDR (Low Power DDR)

Low-power optimized DDR memory designed for battery-powered mobile devices. Versions like LPDDR4, LPDDR4X, LPDDR5 and LPDDR5X balance high performance with ultra-low power consumption, widely used in smartphones, tablets and embedded IoT devices.

6. Specialized DRAM types

• HBM (High Bandwidth Memory): Stacked high-bandwidth DRAM with 3D packaging, delivering extreme bandwidth for high-end GPU, AI accelerators and data center servers.
• RLDRAM (Reduced Latency DRAM): Low-latency specialized DRAM, mainly used in network routers, switches and communication infrastructure for fast data access.

Micron Technology MT53 Series DRAM

The Micron MT53 Series is a high-end LPDDR4/LPDDR4X DRAM family designed for automotive electronics, industrial control systems, embedded ARM platforms, edge AI, and drones. It is built with core advantages including high bandwidth, ultra-low power consumption, wide temperature tolerance, and automotive-grade reliability, making it a preferred memory solution for high-performance embedded systems.

This series includes two main sub-families, MT53D and MT53E, covering capacities from 2Gb to 64Gb, supporting x16 and x32 data widths, and data rates from 3733MT/s to 4266MT/s. It is offered in compact 200-ball VFBGA/TFBGA packages, meeting the requirements of space-constrained and harsh-environment designs.

Micron MT53 Series Memory Chip Model Breakdown

Taking the typical model MT53E256M32D2DS-053 AAT:B as an example:

• MT53: Dedicated prefix for the Micron LPDDR4 Memory series
• D/E: Voltage and generation (D = LPDDR4 1.2V; E = LPDDR4X 1.1V / 0.6V low power)
• 256M: Capacity (256Mb = 32MB; 1G = 1Gb = 128MB; 2G = 2Gb = 256MB)
• 32: Data width (x16 / x32, with x32 offering higher bandwidth)
• D2: Die configuration (D1 = single die, D2 = dual die, D4 = quad die)
• DS / FW / DE: Package type (DS = 200-ball WFBGA; FW = TFBGA; DE = VFBGA)
• 046 / 053: Speed grade and timing (046 = 4266MT/s @ 2133MHz; 053 = 3733MT/s @ 1866MHz)
• AAT / AIT / WT: Temperature grade and origin (AIT = -40℃ to +95℃ industrial; AAT = -40℃ to +105℃ automotive; WT = Taiwan packaging)
• :B / C: Revision and batch version (B/C are iterative versions with backward-compatible upgrades)

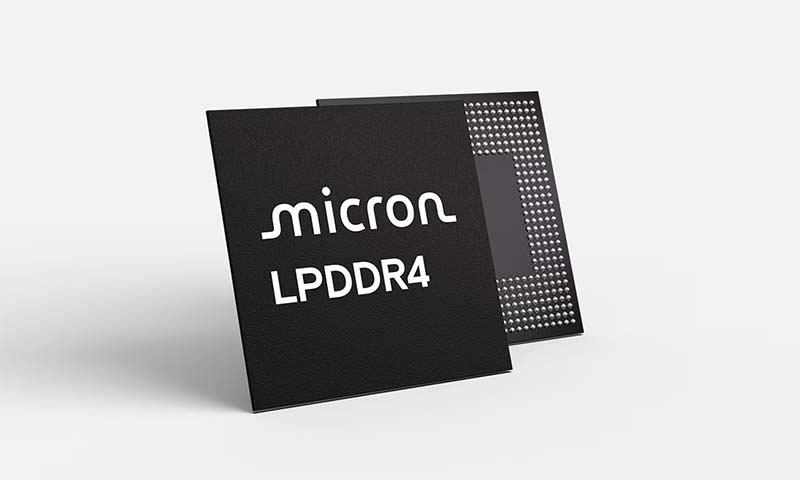

Micron LPDDR4 MT53 Series Memory Chips Driving Automotive & AI Innovation

The Micron MT53 Series LPDDR4 DRAM is a low-power, high-bandwidth automotive and industrial-grade memory solution built on the advanced 1α process node. It is designed for high-reliability, low power consumption, and high-density applications, supporting both LPDDR4 and LPDDR4X standards.

The series offers capacities ranging from 2Gb to 32Gb, with data rates of up to 4266MT/s (equivalent to 2133MHz). It features three key advantages: an ultra-low 1.1V core voltage, wide operating temperature range, and compact FBGA packaging.

As a result, it has become a core storage solution for automotive electronics, AI modules, industrial control systems, and edge computing applications.

Micron Memory Solutions for Automotive Application

Stringent Automotive-Grade Certification

Compliant with AEC-Q100 Grade 1/2 standards, it supports an ultra-wide operating temperature range from -40℃ to +125℃. Featuring high and low temperature resistance as well as electromagnetic interference immunity, it is well suited for high-temperature and high-vibration scenarios such as vehicle cabins, ADAS, and autonomous driving domain controllers.

Low Power Consumption & High Bandwidth, Balancing Energy Efficiency and Computing Power

Adopting a dual-voltage design with ultra-low LPDDR4X I/O voltage (0.6V) and core voltage (1.1V), it reduces power consumption by over 40% compared with traditional DDR, lowering the load on vehicle batteries and extending cruising range. With a 32-bit interface delivering a bandwidth up to 17GB/s, it supports real-time high-definition image transmission, radar data processing, and parallel computing for autonomous driving algorithms, meeting the high-throughput requirements of automotive multi-task operation.

Compact & Highly Integrated

Packaged in 200-ball WFBGA/TFBGA, it features a compact size of only 10mm×14.5mm and a thickness as low as 0.8mm. The single-chip multi-Die architecture minimizes PCB footprint, ideal for space-constrained designs such as automotive central control, instrument panels, and automotive-grade AI modules, while simplifying system integration.

High-Reliability Data Storage for Safety Assurance

It integrates an on-chip temperature sensor for real-time monitoring, Partial Array Self-Refresh (PASR), and programmable read/write latency, enabling dynamic adjustment of power consumption and performance according to vehicle operating loads. Equipped with hardware ECC error correction and electrostatic discharge resistance, it prevents data packet loss in complex electromagnetic environments and ensures data integrity for safety-critical systems including ADAS and autonomous driving.

Micron Memory and Storage for AI Acceleration

High Bandwidth and Low Latency

With an ultra-high data rate of 4266MT/s and a 16n prefetch architecture, a single chip can deliver bandwidth of up to 8.5GB/s. This enables fast AI model weight loading and real-time feature data throughput, significantly reducing neural network inference latency.

The dual-channel (x32) concurrent design allows parallel processing of multiple image and sensor data streams, making it ideal for real-time applications such as edge AI modules, industrial vision systems, and drone AI computing.

Low Power Consumption and High Density

Featuring an ultra-low operating voltage of 1.1V and dynamic power management, the standby power consumption is reduced to only milliwatt levels. This meets the low-energy requirements of battery-powered edge AI devices such as drones, portable AI terminals, and embedded ARM platforms.

With capacities of up to 32Gb (4GB) per chip, the solution supports lightweight deployment of large AI models and parallel execution of multiple models, balancing computing performance and storage density for edge devices.

Wide Temperature Stability for Harsh Industrial AI Environments

The memory supports an industrial-grade operating temperature range from -40°C to +95°C, with strong resistance to vibration, dust, and electromagnetic interference. It is well suited for harsh environments including industrial robots, smart factory control units, and outdoor AI surveillance systems.

Compliant with RoHS environmental standards, it ensures stable 24/7 operation for industrial AI equipment.

Flexible Compatibility and Easy Integration

The solution is compatible with mainstream AI SoC such as ARM-based processors and FPGAs, as well as major operating systems. It supports programmable burst lengths (BL=16/32) and configurable read/write latency to match different AI model performance requirements.

Flexible single-channel and dual-channel configurations allow memory expansion based on AI module computing demands, reducing design complexity and component selection costs.

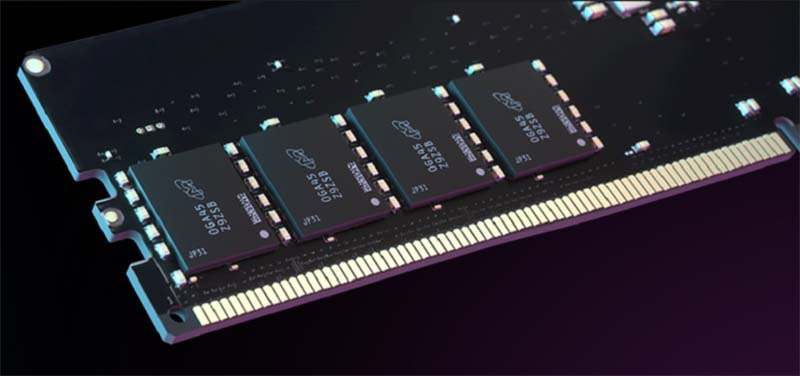

Why Choose Micron Memory DRAM?

Micron is a leading global DRAM manufacturer with over 40 years of expertise, offering high-performance, reliable, and versatile DRAM solutions for a wide range of applications. Micron stands alongside Samsung as one of the top suppliers in the global memory market. So why choose Micron memory chip for you hardware system?

Leading Performance & Bandwidth

Micron DDR5 delivers up to 2x bandwidth vs. DDR4 (up to 9200 MT/s for RDIMMs), accelerating AI, HPC, and cloud workloads. Its LPDDR5/5X provides high speed (up to 6400 Mt/s) with low power for mobile and embedded devices.

Ultra-High Capacity & Scalability

Offers industry-leading densities: DDR5 RDIMMs up to 128GB, MRDIMMs up to 256GB, ideal for large-scale data centers and memory-intensive AI applications.

Superior Reliability & Quality

Vertically integrated manufacturing (in-house design, production, and testing) ensures strict quality control. All modules are 100% tested for mission-critical environments, with ECC support for servers and extended temperature ranges for industrial/automotive use.

Optimized Power Efficiency

DDR5 reduces voltage to 1.1V (vs. DDR4's 1.2V), cutting power consumption. LPDDR5 is 20% more efficient than LPDDR4X, extending battery life for mobile devices.

Comprehensive Product Portfolio

Micron memory modules covers all DRAM types: DDR4/DDR5 (servers/PCs), LPDDR (mobile/IoT), GDDR (graphics), and specialized DRAM (HBM/RLDRAM) for networking/AI. Compatible with Intel/AMD platforms for seamless integration.

Innovation & Technical Support

Pioneers advanced nodes (1α/1β/1γ) for higher density and efficiency. Provides expert engineering support to optimize memory for specific workloads, ensuring faster time-to-market.

Why Choose Eastech as the Supplier for Micron MT53 series?

Eastech has been deeply involved in the semiconductor and electronic components distribution industry for many years. With extensive industry experience and strong resource integration capabilities, we have become an authorized distributor of Micron while also partnering with leading global memory manufacturers such as Samsung to provide customers with comprehensive and highly reliable memory chip solutions.

Authorized Supply with Guaranteed Quality

All products we distribute are sourced directly from original manufacturers such as Micron and Samsung, with complete authorization credentials and traceability systems. Every chip is 100% original and authentic, eliminating the risks of refurbished or recycled components. Each chip undergoes strict manufacturer testing to ensure long-term stable operation and reliable product quality.

Comprehensive Product Portfolio for Easy Selection

From entry-level asynchronous DRAM to advanced DDR5 and HBM products, and from standard DRAM to MT53 Series low-power memory chips and GDDR graphics memory, we provide full-category DRAM coverage. Combined with memory solutions from brands such as Samsung, we offer one-stop supply for a wide range of applications and specifications, significantly reducing procurement complexity and communication costs.

Stable Supply Chain with Efficient Delivery

Supported by manufacturer allocation resources and a global warehousing network, we maintain a secure inventory system with ready stock of Micron MT53 Series products and mainstream DRAM devices. This helps reduce supply pressure during chip shortages while ensuring stable availability. By optimizing logistics and delivery processes, we provide fast response times and efficient shipment schedules to support uninterrupted customer production.

Flexible Custom Solutions with Cost Advantages

Based on customers' application requirements and budget goals, we provide customized memory chip solutions that balance performance, power consumption, and cost efficiency. Leveraging our large-scale procurement advantages, we are able to offer highly competitive pricing for storage and memory components.

Micron MT53 Series Memory

MT53D1024M32D4DT-053 AAT:D

MT53E128M32D2DS-053 WT:A

MT53E256M16D1DS-046 AAT:B

MT53E256M16D1FW-046 AAT:B

MT53E256M16D1FW-046 AIT:B

MT53E256M16D1DS-046 WT:B

MT53E256M32D1KS-046 AAT:L

MT53E256M32D1KS-046 WT:L

MT53E256M32D2DS-053 AAT:B

MT53E256M32D2DS-046 WT:B

MT53E256M32D2FW-046 AIT:B

MT53E512M32D1ZW-046 AIT:B

MT53E512M32D1ZW-046 AAT:B

MT53E512M32D1ZW-046 WT:B

MT53E512M32D1ZW-046BAUT:B

MT53E1G32D2NP-046 WT:B

MT53E1G32D2FW-046 AUT:B

MT53E1G16D1ZW-046AAT:C

MT53E1G16D1ZW-046 AIT:C

MT53E1G32D2FW-046 WT:B

MT53E1536M32D4DE-046 WT:C

MT53E1536M32D4DT-046 AIT:A

MT53E2G32D4DE-046 AAT:C

MT53E2G32D4DE-046 WT:C

We supply not only Micron MT53 memory chips, but also a comprehensive portfolio of other models and renowned brands including Samsung, SKHynix, FORESEE and Kingston. Feel free to contact us anytime for inquiries about any electronic components.

The MT53 Series Micron LPDDR4 memory and DRAM products we supply are widely used in consumer electronics such as smartphones, tablets, and wearable devices; industrial control equipment including industrial tablets, PLCs, and IoT gateways; automotive electronics such as in-vehicle infotainment systems and ADAS; as well as data centers, AI servers, and security surveillance systems.
